A-Frame House

255 m²

12.3 m × 13.9 m

6 Rooms

3 Bathrooms

❮

❯

Structure:

The entire bearer system of the building is made of weldless, special formed Light weight galvanized steel profiles (S350)

Structural study criteria:

Earthquake Terms: Suitable for 1st degree quake conditions

Climate Terms: Suitable for 3rd type climate conditions

Snow Load: 80 kg/m²

Wind Speed: 102 km/hour

Chassis Load Capacity: 200 kg/m²

Foundation:

Concrete Foundation will be prepared on-site according to the provided detail by the seller.

Exterior Walls:

Exterior Covering: 11 mm OSB + 10 mm Stone Texture Cement-Boards + Paint.

Structure: 140mm thick Steel Carcass made of 1mm thick Galvanized steel sheet special formed C profiles.

Insulation: 100 mm thick, 40 kg/m3 Rockwool, A1 Class Fire-Retardant, EN 13162.

Interior Covering: Double layer of 12.50mm thick Gypsum-boards + Paint.

Interior Walls:

Both sides Covering: Single layer of 12.50mm thick Gypsum-boards + Paint.

Structure: 90mm thick Steel Carcass made of 1mm thick Galvanized steel sheet special formed C profiles.

Insulation: 80 mm thick, 40 kg/m3 Rockwool, A1 Class Fire-Retardant, EN 13162.

Mid-Floor Slab:

Slab & Stairs Construction: Slab and stairs beams and panels are formed from C profiles cold-formed from 1 mm thick, galvanized steel sheets using rollform machines.

Railing: Metaş 304 Quality Stainless Chrome Stair Railing 100 cm PMK-100.

Mid-floor slab Insulation: 100 mm thick, 40 kg/m3 Rockwool, A1 Class Fire-Retardant, EN 13162.

Slab cover: 18mm OSB.

Ceiling – Roof:

Structure: Roof Trusses, Purlins and ceiling panels are formed from 90-140mm high C profiles cold-formed from 1 mm thick, galvanized steel sheets using rollform machines.

Roof Covering: 11mm OSB + 2mm Moisture Barrier + 2mm BTM Shingle Dragon Sheets.

Roof Insulation: 100 mm thick, 40 kg/m3 Rockwool, A1 Class Fire-Retardant, EN 13162.

Ceiling: One layer of 12.50mm thick Gypsum-boards.

Doors:

Exterior Doors: Anthracite Color, U-PVC windows, Double Functioned (EGE PEN) brand.

Interior Doors: MDF-lam interior doors with wooden frames (220×90).

Windows:

Windows: Anthracite Color, U-PVC windows, Double Functioned (EGE PEN) brand.

Windows Frameworks: 1 mm thick coil coating painted-galvanized steel sheet.

Glass: Double Glazed 4+11+4mm thick (ISICAM) brand.

Electricity System:

Cable: For electric power 2.000W 220Volt sockets 3*2.5 Nym, for lighting lines 2 * 1.5 Nym .

Plumbing System:

Clean Water Pipes: PPRC – FIRAT brand pipes.

Dirty Water Pipes: PVC – FIRAT- GEDİZ brand pipes.

Luminaires & accessories:

Luminaires: Horoz Aura 5W 4200K Led Recessed Spots + Art&Gift Handel Mika Single Ceiling Pendant Lamps.

Electrical Plugs & Switches: VİKO brand (classic type)

Sanitary wares:

Toilet seat: Visam -durabagno Concealed Cistern Drainless Wall Hung WC Set.

Sink and Shower Faucets: Durul Shower Cabin – Koçtaş shower faucet.

Flooring:

Wet areas Floor: 45×45 High quality VitrA Decogrey brand Ceramics.

Rooms Flooring: 8 mm thick underlay + 8mm high quality Laminaed parquet (Stepclick Castle) brand.

Kitchen:

Cabinets: Laminated MDF with high quality accessories.

kitchen sink: Stainless steel.

kitchen mixer: Creavit brand faucet.

Bench: Solid wood panels.

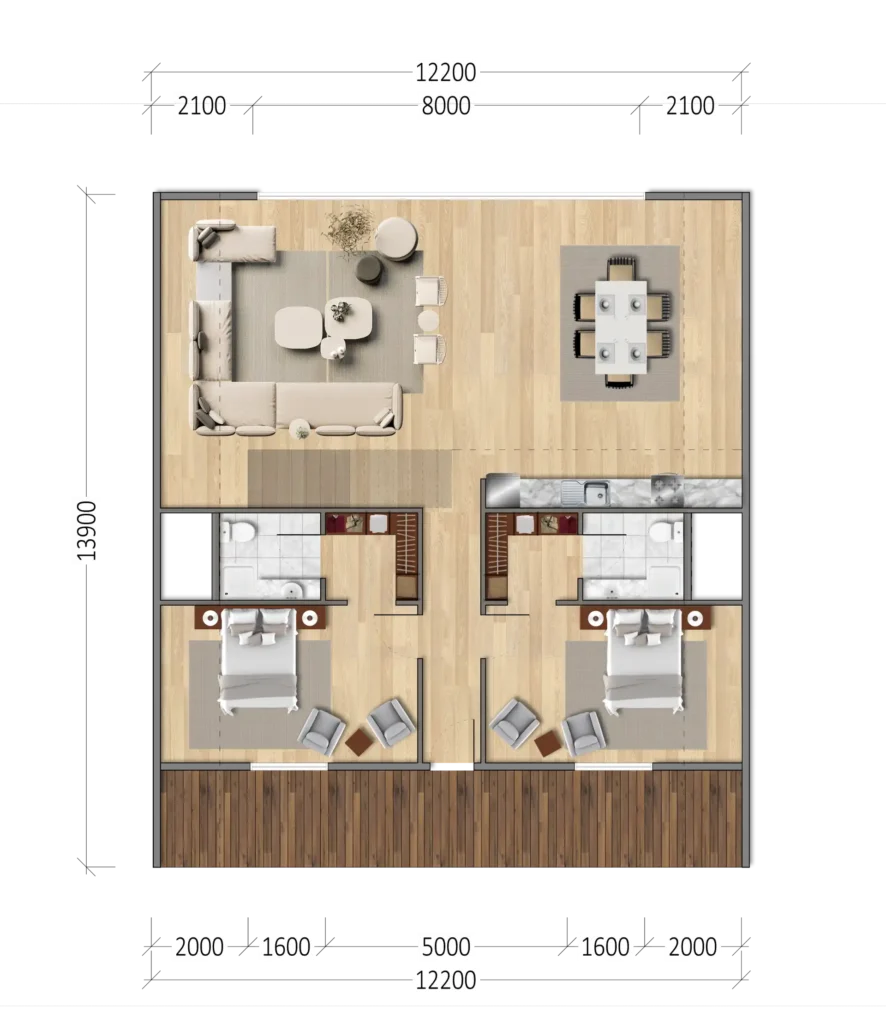

Ground Floor Plan

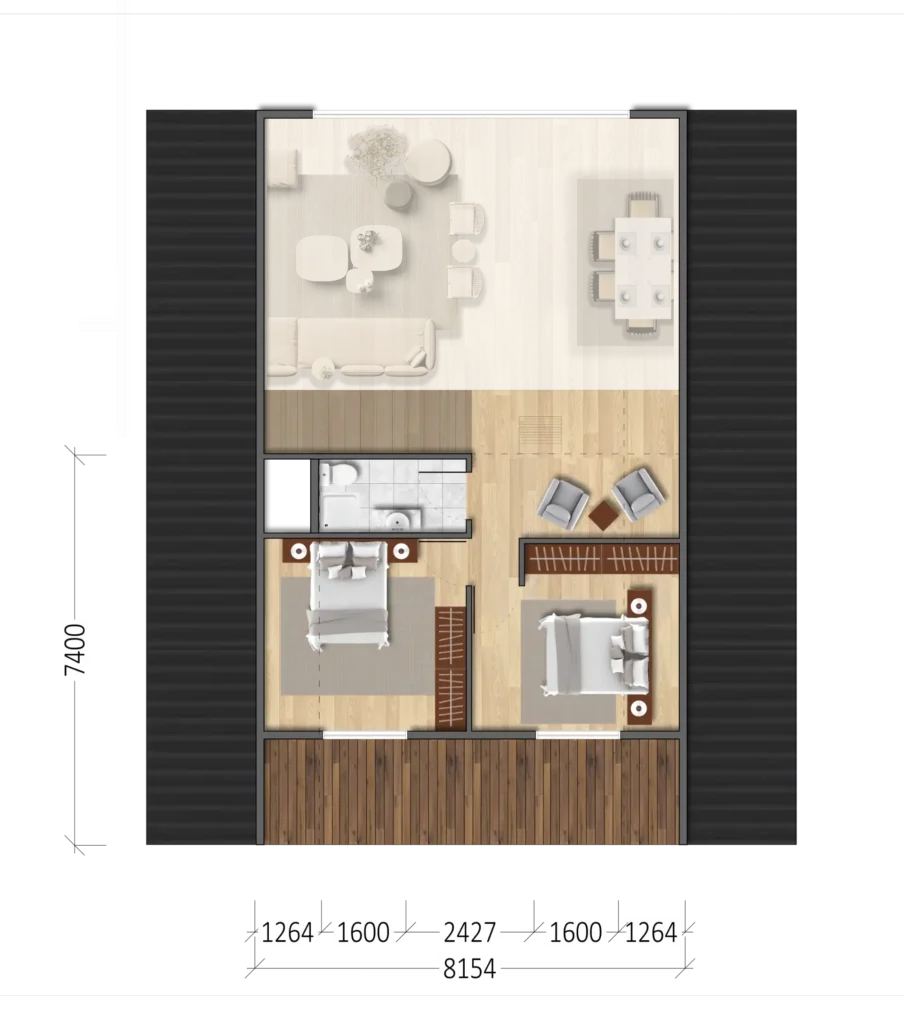

First Floor Plan

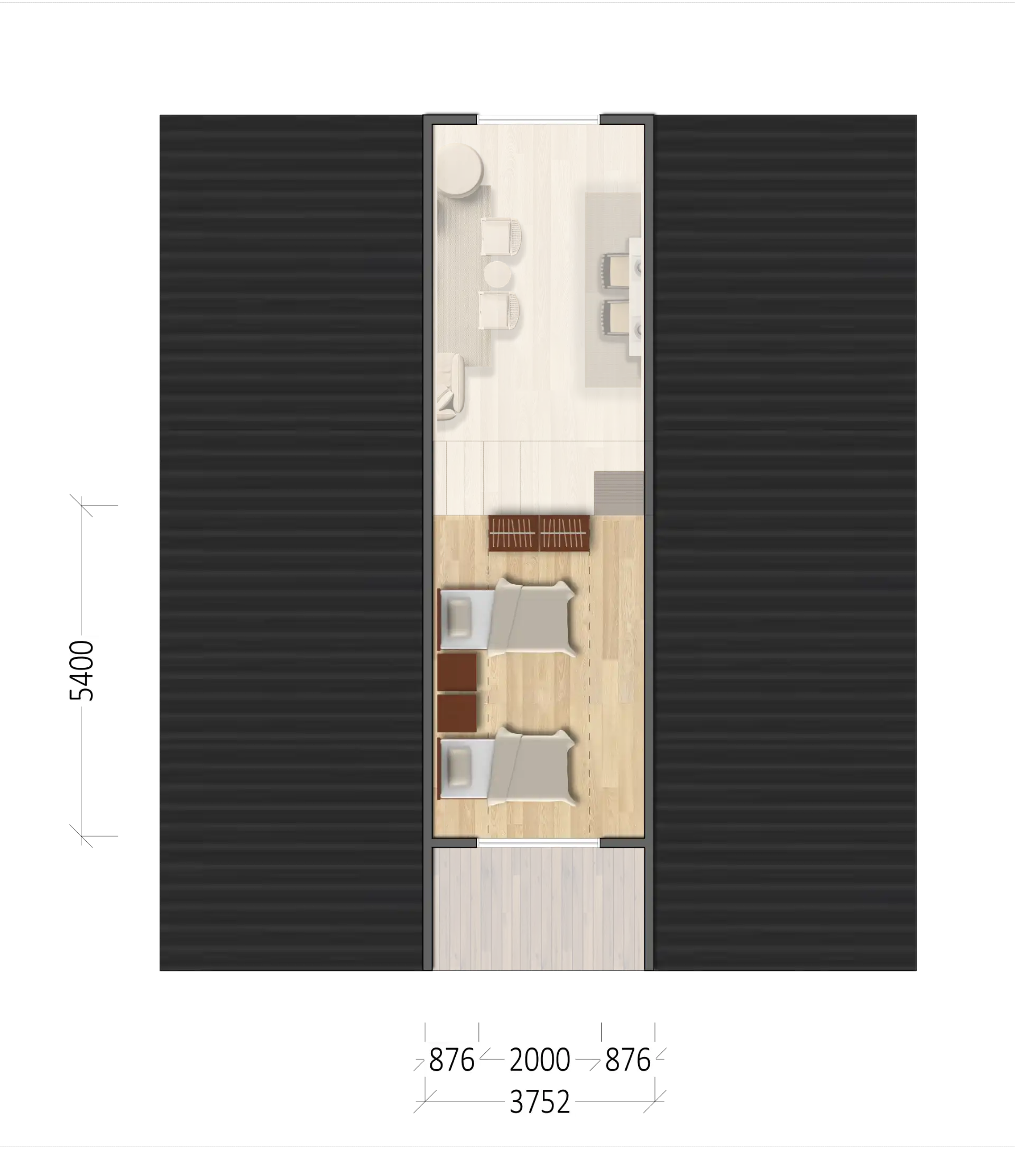

Second Floor Plan

Key Features:

Long lifespan of thirty years for the structure.
High resistance to humidity and elevated temperatures.
Complete thermal and acoustic insulation designed to suit the climate of targeted regions.
Double glazing to enhance insulation properties.
High-quality, eco-friendly, and recyclable materials with global quality certifications.
Structural engineering study based on international standard regulations.
Lightweight structure, reducing the weight of the concrete foundation, making it cost-effective.
Dismantling and relocation capability for installation at a different site.
Ability to choose and modify exterior cladding colors and materials.
Two-year warranty on the structure.
